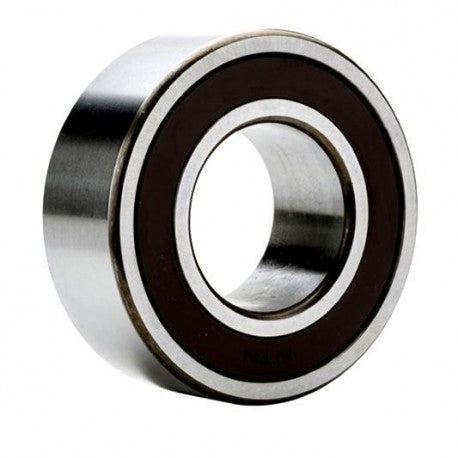

5203CLLU NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 9050 N
outside diameter : 40 mm
Bore Diameter : 17 mm
operating temperature range : -40 to 120 ºC
overall width : 0.6875 in
cage material : Steel
contact angle : 25 °
outer ring width : 17.5 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 13000 RPM
internal clearance : C0
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Double Seal
fillet radius : 0.6 mm
snap ring included : Without Snap Ring
Series : 52
