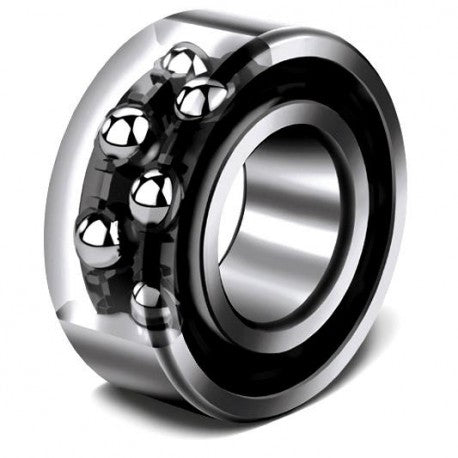

5203TNC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 17 mm
operating temperature range : Maximum of +250 °F
outside diameter : 40 mm
cage material : Synthetic Resin
overall width : 0.6875 in
contact angle : 25 °
outer ring width : 17.5 mm
maximum rpm : 15000 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : ABEC 1 (ISO Class Normal)
internal clearance : C3
closure type : Open
fillet radius : 0.6 mm
radial dynamic load capacity : 1490 kgf
Series : 52
Radial static load capacity : 920 kgf
