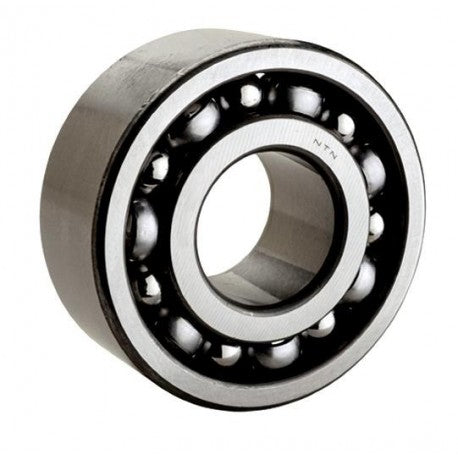

5204 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
maximum rpm : 12000 rpm
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 1 mm
Bore Diameter : 20 mm
Radial static load capacity : 12100 N
outside diameter : 47 mm
operating temperature range : -40 to 120 ºC
overall width : 0.8125 in
cage material : Steel
contact angle : 30 °
outer ring width : 20.6 mm
row type & fill slot : Double-Row Non-Fill Slot
snap ring included : Without Snap Ring
Series : 52
