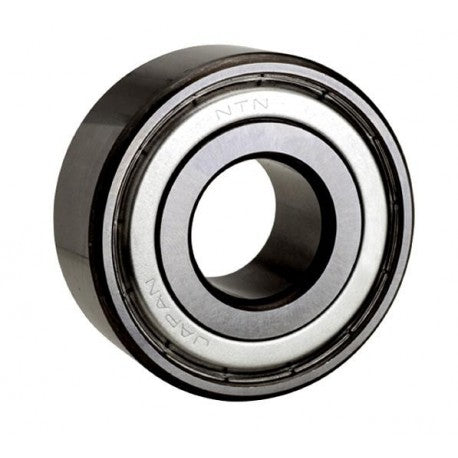

5204CZZ NTN Double Row Angular Contact Ball Bearings Features & Specifications:
operating temperature range : -40 to 120 ºC
outside diameter : 47 mm
Bore Diameter : 20 mm
cage material : Steel
overall width : 0.8125 in
outer ring width : 20.6 mm
contact angle : 25 °
maximum rpm : 13000 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C0
precision rating : Class 0
fillet radius : 1 mm
bore type : Round
closure type : Double Shield
Series : 52
snap ring included : Without Snap Ring
standards met : MIL-G-18709A
