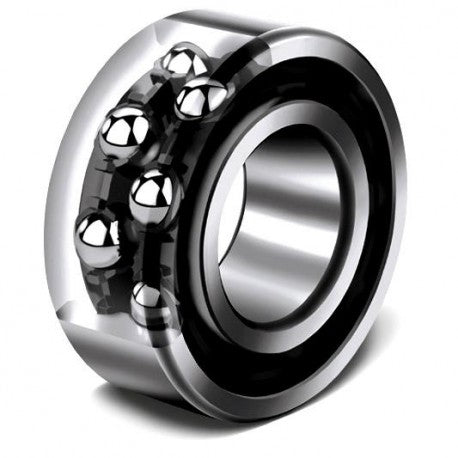

5205J NSK Double Row Angular Contact Ball Bearings Features & Specifications:
operating temperature range : Maximum of +250 °F
outside diameter : 52 mm
Bore Diameter : 25 mm
cage material : Steel
overall width : 0.8125 in
outer ring width : 20.6 mm
contact angle : 25 °
maximum rpm : 11000 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C0
precision rating : ABEC 1 (ISO Class Normal)
fillet radius : 1 mm
closure type : Open
radial dynamic load capacity : 2170 kgf
Series : 52
Radial static load capacity : 1500 kgf
