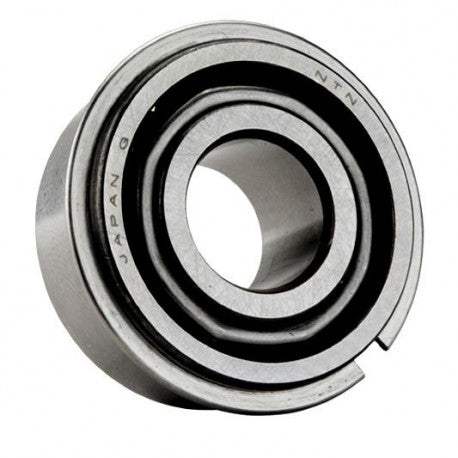

5205NR NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 25 mm
Radial static load capacity : 14700 N
outside diameter : 52 mm
operating temperature range : -40 to 120 ºC
overall width : 0.8125 in
contact angle : 25 °
cage material : Steel
outer ring width : 20.6 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 11000 rpm
finish/coating : Uncoated
internal clearance : C0
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 1 mm
snap ring included : With Snap Ring
Series : 52
