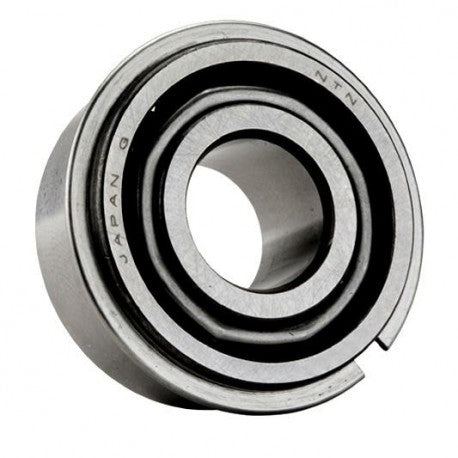

5206NR NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 21100 N
outside diameter : 62 mm
Bore Diameter : 30 mm
operating temperature range : -40 to 120 ºC
overall width : 0.9375 in
cage material : Steel
contact angle : 25 °
maximum rpm : 9500 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
fillet radius : 1 mm
closure type : Open
snap ring included : With Snap Ring
bearing material : High Carbon Chrome Steel
