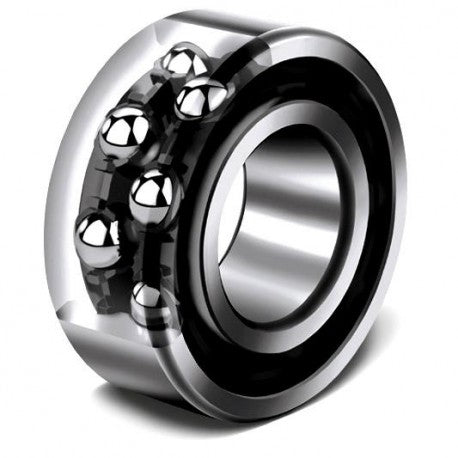

5207J NSK Double Row Angular Contact Ball Bearings Features & Specifications:
operating temperature range : Maximum of +250 °F
cage material : Steel
Bore Diameter : 35 mm
outside diameter : 72 mm
overall width : 1.0625 in
outer ring width : 27 mm
contact angle : 25 °
maximum rpm : 8000 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C0
precision rating : ABEC 1 (ISO Class Normal)
closure type : Open
fillet radius : 1 mm
radial dynamic load capacity : 4000 kgf
Series : 52
Radial static load capacity : 2920 kgf
