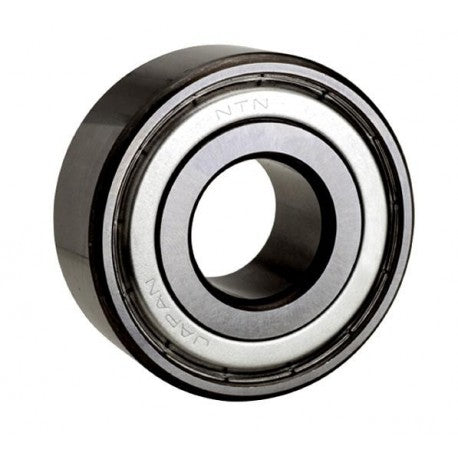

5207ZZG15 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Double Shield
fillet radius : 1.1 mm
snap ring included : Without Snap Ring
Bore Diameter : 35 mm
radial dynamic load capacity : 39000 N
outside diameter : 72 mm
Radial static load capacity : 28500 N
overall width : 27 mm
operating temperature range : -40 to 120 ºC
contact angle : 30 °
cage material : Nylon
row type & fill slot : Double-Row Non-Fill Slot
bearing material : High Carbon Chrome Steel
