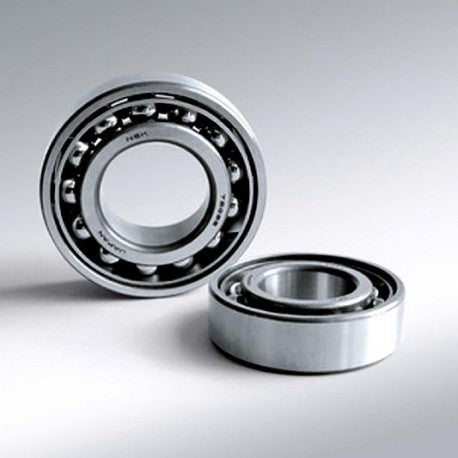

5209 ZZTNGC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
snap ring included : Without Snap Ring
outside diameter : 85 mm
Bore Diameter : 45 mm
radial dynamic load capacity : 47500 N
overall width : 1.1875 in
maximum temperature : 120 °C
contact angle : 25 °
cage material : Polyamide Cage
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC1, P0
fillet radius : 1.1 mm
bore type : Round
closure type : Shielded
Series : 5200
