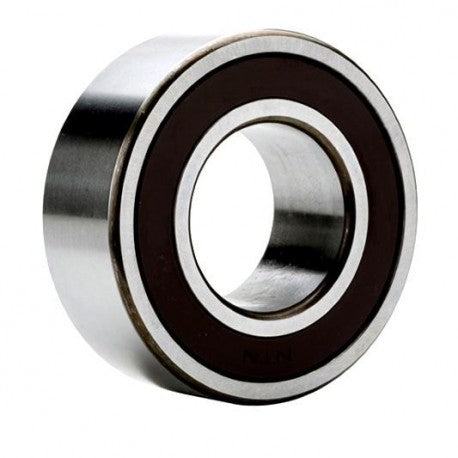

5209CLLD/L417 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 45 mm
radial dynamic load capacity : 49500 N
outside diameter : 85 mm
Radial static load capacity : 38000 N
overall width : 1.1875 in
contact angle : 25 °
operating temperature range : -40 to 120 ºC
cage material : Steel
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Double Seal
fillet radius : 1.1 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
