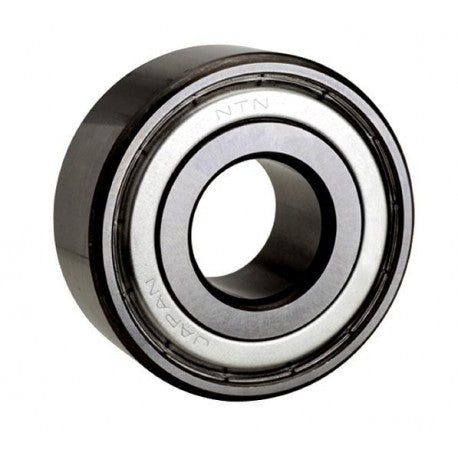

5209CZZ NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 33500 N
outside diameter : 85 mm
Bore Diameter : 45 mm
operating temperature range : -40 to 120 ºC
overall width : 1.1875 in
cage material : Steel
contact angle : 25 °
outer ring width : 30.2 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 5900 RPM
internal clearance : C0
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Double Shield
fillet radius : 1.1 mm
snap ring included : Without Snap Ring
Series : 52
