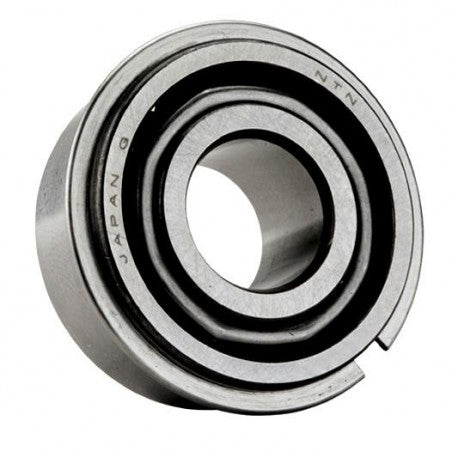

5209NR NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 38000 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 45 mm
outside diameter : 85 mm
overall width : 1.1875 in
cage material : Steel
contact angle : 25 °
maximum rpm : 6700 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 1.1 mm
snap ring included : With Snap Ring
bearing material : High Carbon Chrome Steel
