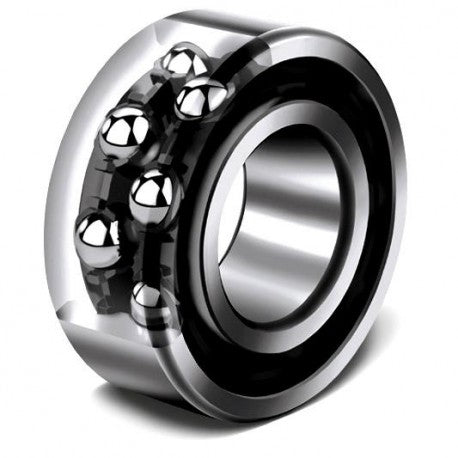

5209TNC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
cage material : Synthetic Resin
outer ring width : 30.2 mm
Bore Diameter : 45 mm
outside diameter : 85 mm
overall width : 1.1875 in
maximum rpm : 6700 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : Not Rated
closure type : Open
fillet radius : 1 mm
radial dynamic load capacity : 5050 kgf
Series : 52
Radial static load capacity : 3900 kgf
