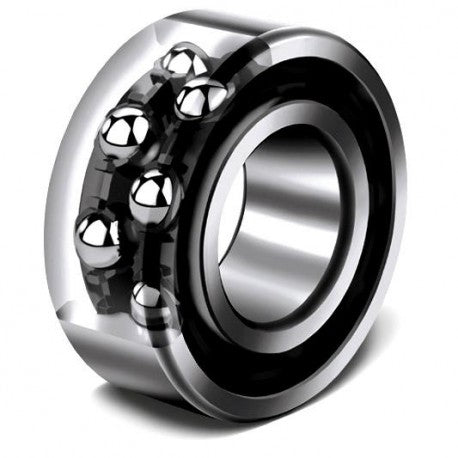

5210 TNG C3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 50700 N
outside diameter : 90 mm
Bore Diameter : 50 mm
maximum temperature : 120 °C
overall width : 1.1875 in
cage material : Polyamide Cage
contact angle : 25 °
maximum rpm : 4600 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC1, P0
fillet radius : 1.1 mm
bore type : Round
closure type : Open
Series : 5200
snap ring included : Without Snap Ring
