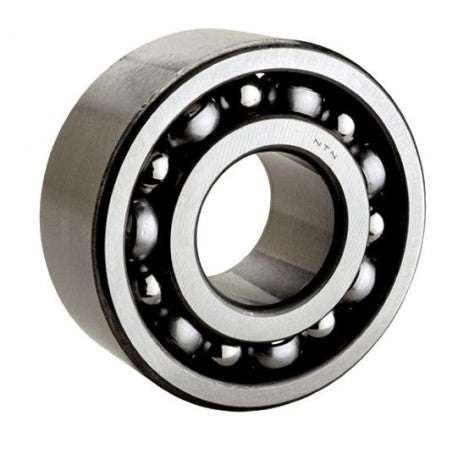

5211 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 49000 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 55 mm
outside diameter : 100 mm
overall width : 1.3125 in
cage material : Steel
contact angle : 25 °
outer ring width : 33.3 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 5600 rpm
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 1.5 mm
snap ring included : Without Snap Ring
Series : 52
