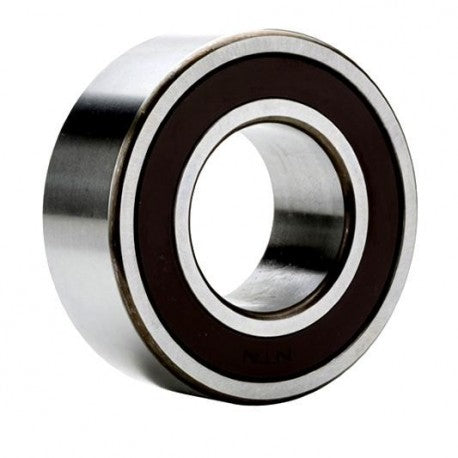

5211CLLU NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 55 mm
radial dynamic load capacity : 56000 N
outside diameter : 100 mm
Radial static load capacity : 49000 N
overall width : 1.3125 in
contact angle : 25 °
operating temperature range : -40 to 120 ºC
cage material : Steel
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Double Seal
fillet radius : 1.5 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
