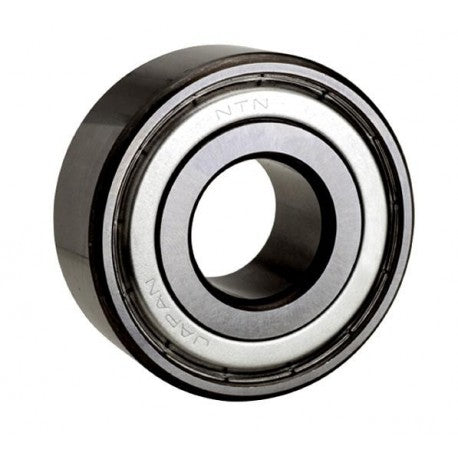

5211CZZ NTN Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 49500 N
outside diameter : 100 mm
Bore Diameter : 55 mm
Radial static load capacity : 43500 N
overall width : 1.3125 in
operating temperature range : -40 to 120 ºC
contact angle : 25 °
cage material : Steel
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
fillet radius : 1.5 mm
closure type : Double Shield
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
