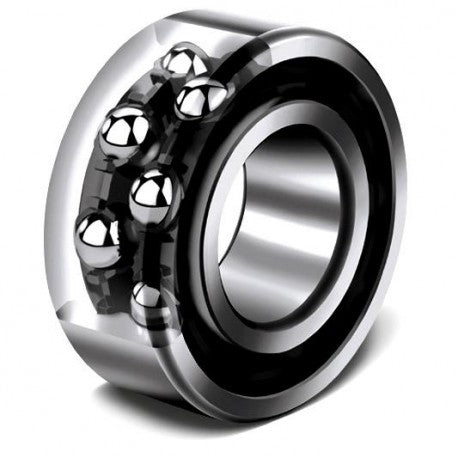

5211J NSK Double Row Angular Contact Ball Bearings Features & Specifications:
finish/coating : Uncoated
internal clearance : C0
precision rating : ABEC 1 (ISO Class Normal)
closure type : Open
fillet radius : 1.5 mm
radial dynamic load capacity : 5700 kgf
Series : 52
Bore Diameter : 55 mm
operating temperature range : Maximum of +250 °F
outside diameter : 100 mm
cage material : Steel
overall width : 1.3125 in
outer ring width : 33.3 mm
contact angle : 25 °
maximum rpm : 5600 RPM
row type & fill slot : Double-Row Non-Fill Slot
Radial static load capacity : 5000 kgf
