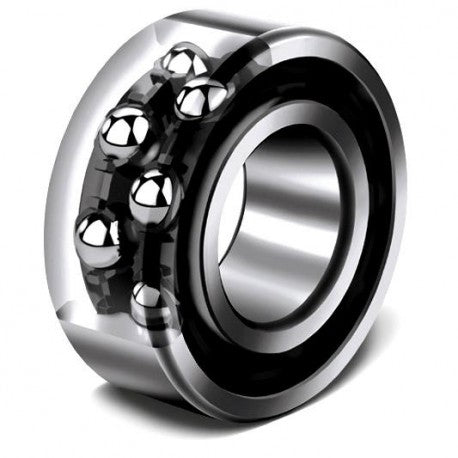

5215 J C3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 93500 N
outside diameter : 130 mm
Bore Diameter : 75 mm
maximum temperature : 120 °C
overall width : 1.6250 in
cage material : Steel Cage
contact angle : 25 °
maximum rpm : 4300 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC1, P0
fillet radius : 1.5 mm
bore type : Round
closure type : Open
Series : 5200
snap ring included : Without Snap Ring
