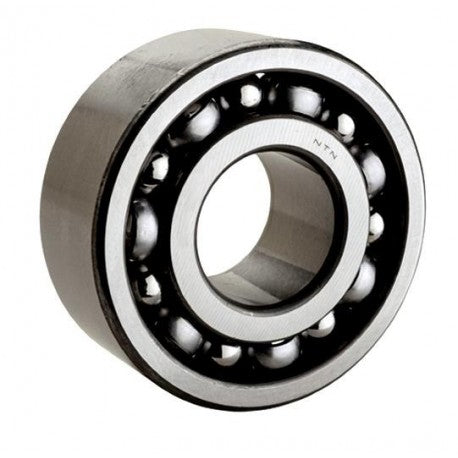

5217 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 2 mm
snap ring included : Without Snap Ring
Bore Diameter : 85 mm
Radial static load capacity : 110000 N
outside diameter : 150 mm
operating temperature range : -40 to 120 ºC
overall width : 1.9375 in
cage material : Steel
contact angle : 25 °
maximum rpm : 3600 rpm
row type & fill slot : Double-Row Non-Fill Slot
bearing material : High Carbon Chrome Steel
