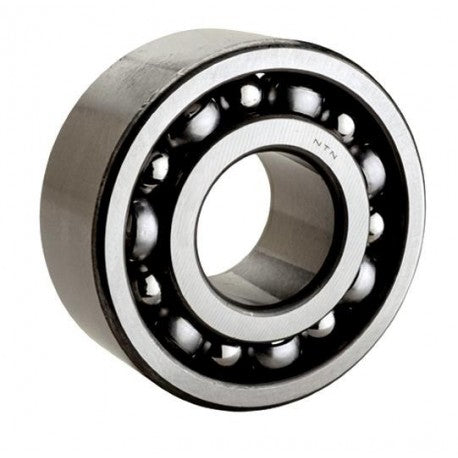

5218WC3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 188950 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 90 mm
outside diameter : 160 mm
overall width : 2.0625 in
cage material : Steel
contact angle : 24 °
maximum rpm : 3000 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 2 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
