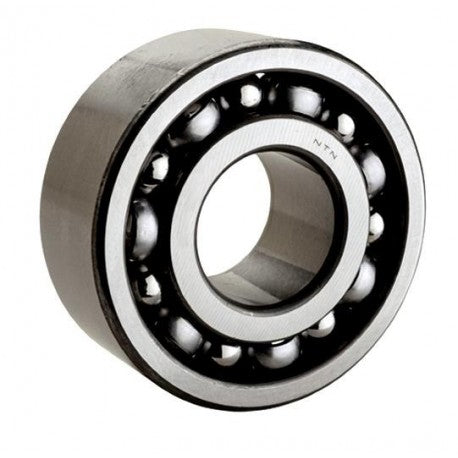

5220 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
maximum rpm : 2700 RPM
internal clearance : C3
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 2.1 mm
Bore Diameter : 100 mm
Radial static load capacity : 164000 N
outside diameter : 180 mm
operating temperature range : -40 to 120 ºC
overall width : 2.3750 in
cage material : Aluminum
contact angle : 25 °
outer ring width : 60.3 mm
row type & fill slot : Double-Row Non-Fill Slot
snap ring included : Without Snap Ring
Series : 52
