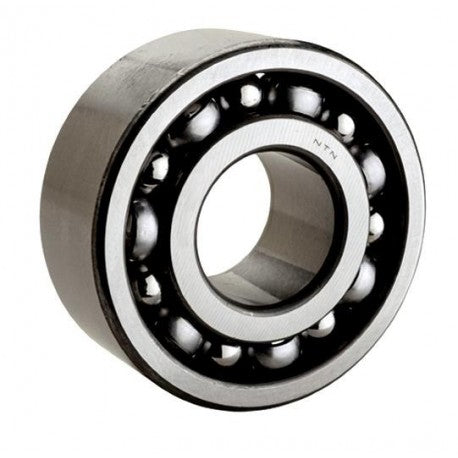

5220C3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 155001 N
Radial static load capacity : 164000 N
Bore Diameter : 100 mm
outside diameter : 180 mm
overall width : 2.3750 in
operating temperature range : -40 to 120 ºC
contact angle : 25 °
cage material : Aluminum
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 2.1 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
