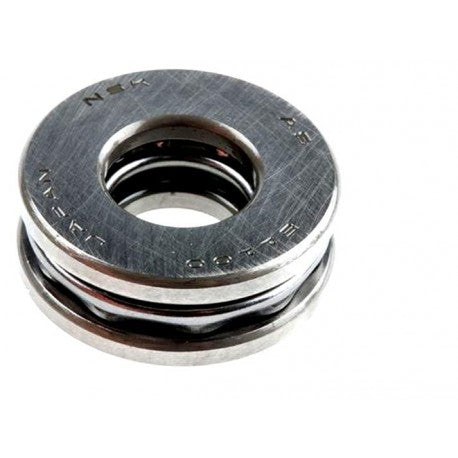

52216 NSK Ball Thrust Bearings bore Features & Specifications:
Bore Diameter : 65 mm
static load capacity : 49000 lbf
outside diameter : 115 mm
dynamic load capacity : 17800 lbf
overall width : 48 mm
thrust bearing type : Double-Direction
operating temperature range : Maximum of +120 °C
maximum rpm : 2600 rpm
outside diameter design : Straight
cage material : Steel Cage
fillet radius : 1 mm
separable or banded : Separable
race type : Flat
Series : 52200
precision rating : ABEC1, P0
