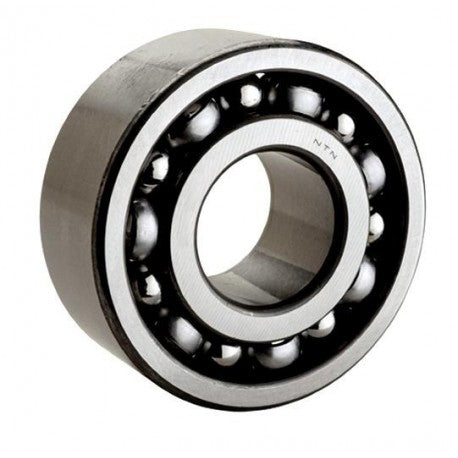

5221C3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 105 mm
radial dynamic load capacity : 194000 N
outside diameter : 190 mm
Radial static load capacity : 189000 N
overall width : 2.5625 in
contact angle : 30 °
operating temperature range : -40 to 120 ºC
cage material : Aluminum
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Open
fillet radius : 2.1 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
