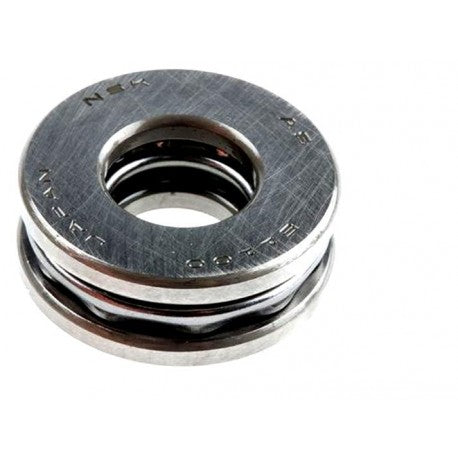

52308 NSK Ball Thrust Bearings bore Features & Specifications:
static load capacity : 30000 lbf
dynamic load capacity : 15700 lbf
Bore Diameter : 30 mm
outside diameter : 78 mm
overall width : 49 mm
operating temperature range : Maximum of +120 °C
thrust bearing type : Double-Direction
maximum rpm : 3400 rpm
outside diameter design : Straight
cage material : Steel Cage
separable or banded : Separable
fillet radius : 1 mm
race type : Flat
Series : 52300
precision rating : ABEC1, P0
