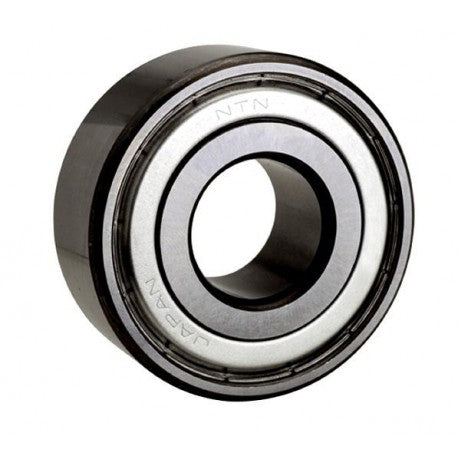

5304CZZ NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 2850 lb
operating temperature range : -40 to 120 ºC
Bore Diameter : 20 mm
outside diameter : 52 mm
overall width : 0.8750 in
cage material : Steel
contact angle : 25 °
outer ring width : 22.2 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 11000 RPM
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Double Shield
fillet radius : 1.1 mm
snap ring included : Without Snap Ring
Series : 53
