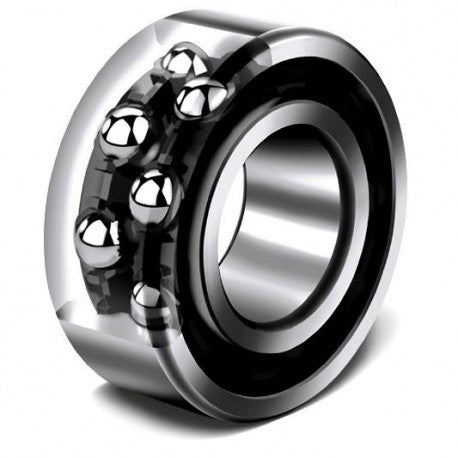

5304TNC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC 1 (ISO Class Normal)
closure type : Open
fillet radius : 1 mm
radial dynamic load capacity : 2510 kgf
Series : 53
Bore Diameter : 20 mm
operating temperature range : Maximum of +250 °F
outside diameter : 52 mm
cage material : Synthetic Resin
overall width : 0.8750 in
outer ring width : 22.2 mm
contact angle : 32 °
maximum rpm : 12000 RPM
row type & fill slot : Double-Row Non-Fill Slot
Radial static load capacity : 1530 kgf
