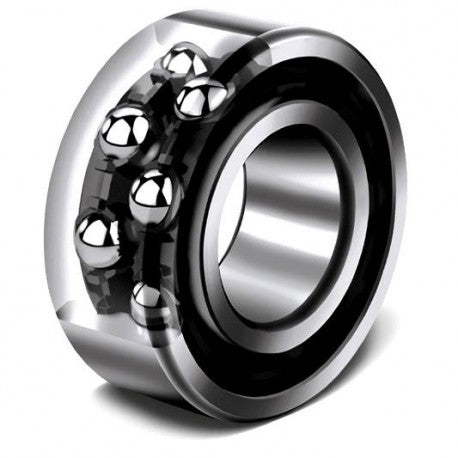

5304ZZTNC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
cage material : Synthetic Resin
outer ring width : 22.2 mm
Bore Diameter : 20 mm
outside diameter : 52 mm
overall width : 0.8750 in
maximum rpm : 12000 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : Not Rated
closure type : Double Shield
fillet radius : 1 mm
radial dynamic load capacity : 2510 kgf
Series : 53
Radial static load capacity : 1530 kgf
