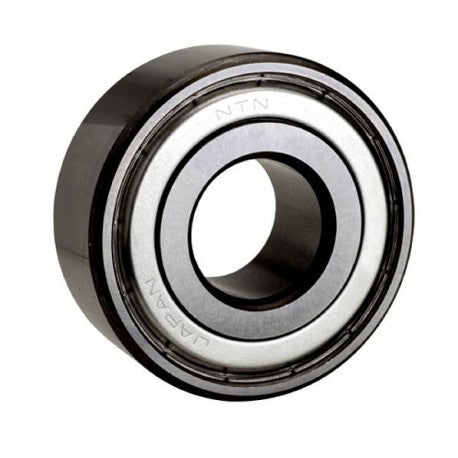

5305CZZC3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 25200 N
Radial static load capacity : 18200 N
Bore Diameter : 25 mm
outside diameter : 62 mm
overall width : 1.0000 in
operating temperature range : -40 to 120 ºC
contact angle : 25 °
cage material : Steel
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Double Shield
fillet radius : 1.1 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
