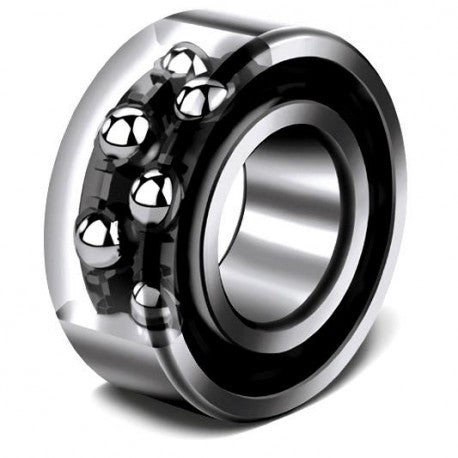

5305NRTNC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
operating temperature range : Maximum of +250 °F
outside diameter : 62 mm
Bore Diameter : 25 mm
cage material : Synthetic Resin
overall width : 1.0000 in
outer ring width : 25.4 mm
contact angle : 25 °
maximum rpm : 10000 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : ABEC 1 (ISO Class Normal)
fillet radius : 1.1 mm
closure type : Open
radial dynamic load capacity : 3350 kgf
Series : 53
Radial static load capacity : 2110 kgf
