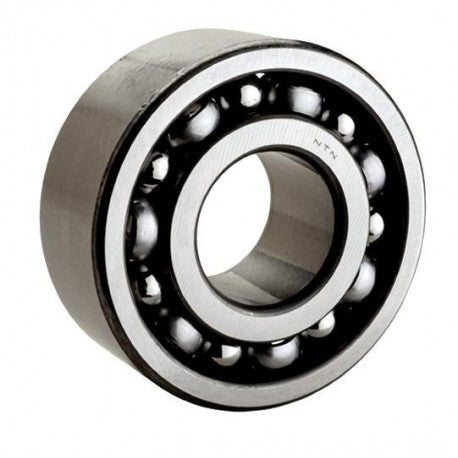

5307WC3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 23640 N
outside diameter : 80 mm
Bore Diameter : 35 mm
operating temperature range : -40 to 120 ºC
overall width : 1.3750 in
cage material : Steel
contact angle : 24 °
maximum rpm : 6600 rpm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
fillet radius : 1.5 mm
closure type : Open
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
