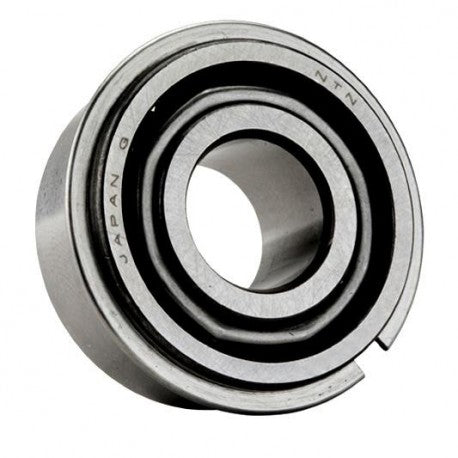

5308NR NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 41000 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 40 mm
outside diameter : 90 mm
overall width : 1.4375 in
cage material : Steel
contact angle : 25 °
outer ring width : 36.5 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 6700 rpm
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
closure type : Open
fillet radius : 1.5 mm
snap ring included : With Snap Ring
Series : 53
