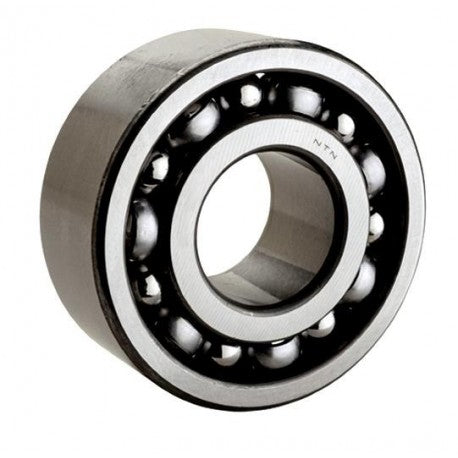

5309 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 51000 N
outside diameter : 100 mm
Bore Diameter : 45 mm
operating temperature range : -40 to 120 ºC
overall width : 1.5625 in
cage material : Steel
contact angle : 25 °
outer ring width : 39.7 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 6000 rpm
internal clearance : C0
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Open
fillet radius : 1.5 mm
snap ring included : Without Snap Ring
Series : 53
