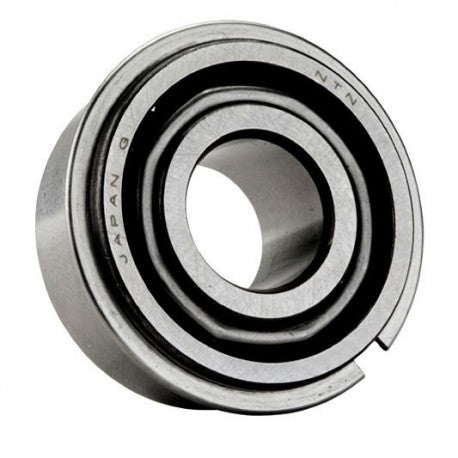

5311NR NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 73000 N
outside diameter : 120 mm
Bore Diameter : 55 mm
operating temperature range : -40 to 120 ºC
overall width : 1.9375 in
cage material : Steel
contact angle : 25 °
outer ring width : 49.2 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 5000 rpm
internal clearance : C0
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Open
fillet radius : 2 mm
snap ring included : With Snap Ring
Series : 53
