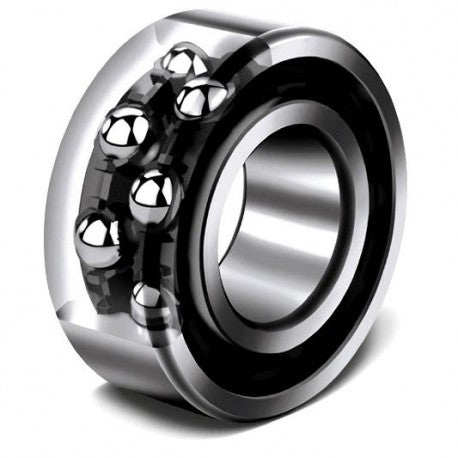

5312C3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 60 mm
operating temperature range : Maximum of +250 °F
outside diameter : 130 mm
cage material : Synthetic Resin
overall width : 2.1250 in
contact angle : 25 °
outer ring width : 54 mm
maximum rpm : 4500 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : ABEC 1 (ISO Class Normal)
internal clearance : C3
closure type : Open
fillet radius : 2 mm
radial dynamic load capacity : 12800 kgf
Series : 53
Radial static load capacity : 10000 kgf
