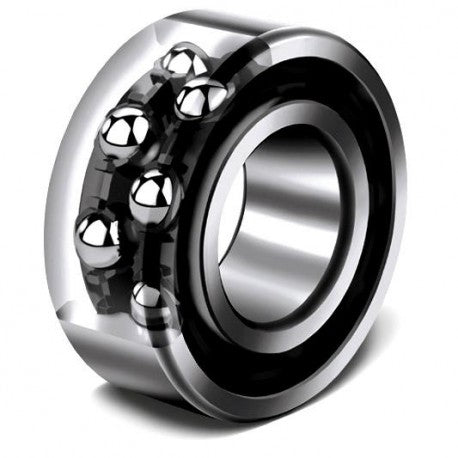

5313ZZTNC3 NSK Double Row Angular Contact Ball Bearings Features & Specifications:
Bore Diameter : 65 mm
Radial static load capacity : 11500 kgf
outside diameter : 140 mm
cage material : Synthetic Resin
overall width : 2.3125 in
contact angle : 30 °
outer ring width : 58.7 mm
maximum rpm : 4300 RPM
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : Not Rated
internal clearance : C3
closure type : Double Shield
fillet radius : 2 mm
radial dynamic load capacity : 14500 kgf
Series : 53
