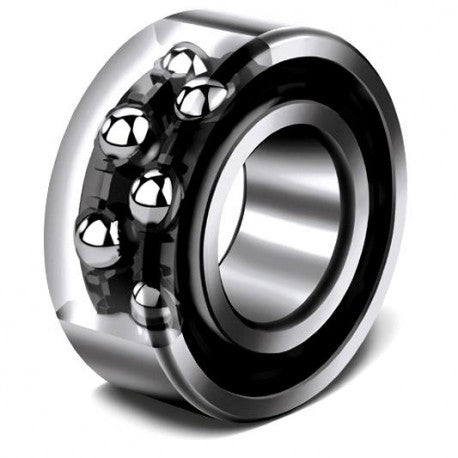

5314 J NSK Double Row Angular Contact Ball Bearings Features & Specifications:
finish/coating : Uncoated
internal clearance : C0
precision rating : ABEC1, P0
bore type : Round
fillet radius : 2.1 mm
closure type : Open
Series : 5300
Bore Diameter : 70 mm
radial dynamic load capacity : 159000 N
outside diameter : 150 mm
maximum temperature : 120 °C
overall width : 2.5000 in
cage material : Steel Cage
contact angle : 25 °
maximum rpm : 3800 rpm
row type & fill slot : Double-Row Non-Fill Slot
snap ring included : Without Snap Ring
