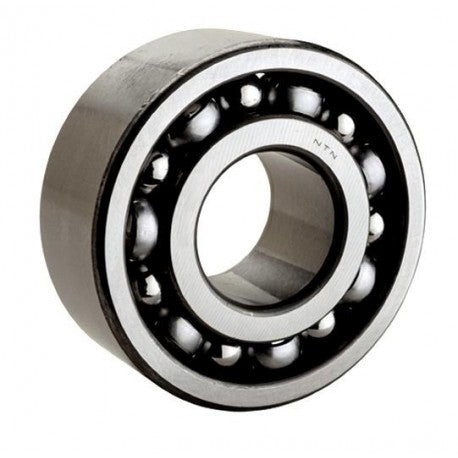

5314 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 128000 N
outside diameter : 150 mm
Bore Diameter : 70 mm
operating temperature range : -40 to 120 ºC
overall width : 2.5000 in
cage material : Steel
contact angle : 25 °
outer ring width : 63.5 mm
row type & fill slot : Double-Row Non-Fill Slot
maximum rpm : 3800 rpm
internal clearance : C3
finish/coating : Uncoated
precision rating : Class 0
bore type : Round
closure type : Open
fillet radius : 2.1 mm
snap ring included : Without Snap Ring
Series : 53
