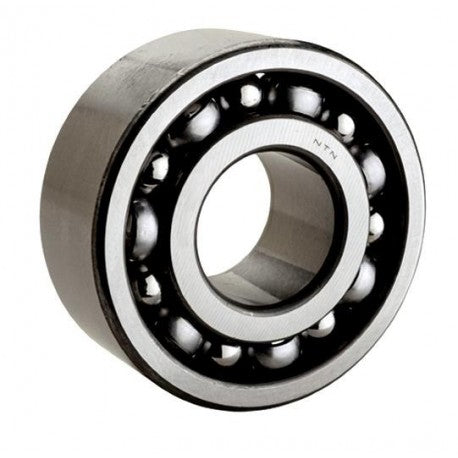

5316C3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
Radial static load capacity : 182000 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 80 mm
outside diameter : 170 mm
overall width : 2.6875 in
cage material : Steel
contact angle : 25 °
outer ring width : 68.262 mm
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C3
precision rating : Class 0
bore type : Round
fillet radius : 2.1 mm
closure type : Open
dynamic load capacity : 95000 lb
snap ring included : Without Snap Ring
static load capacity : 127000 lbs
