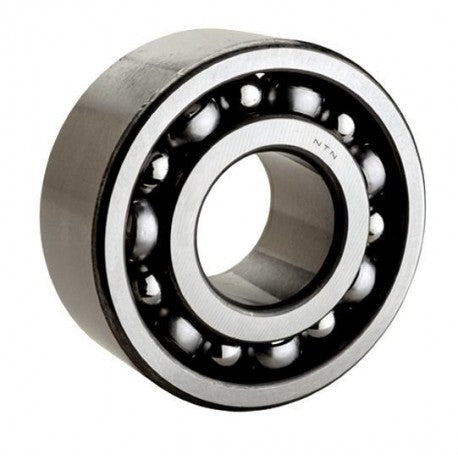

5318 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
operating temperature range : -40 to 120 ºC
cage material : Steel
Bore Diameter : 90 mm
outside diameter : 190 mm
overall width : 2.8750 in
outer ring width : 73.025 mm
contact angle : 25 °
finish/coating : Uncoated
row type & fill slot : Double-Row Non-Fill Slot
precision rating : Class 0
internal clearance : C0
fillet radius : 3.988 mm
bore type : Round
dynamic load capacity : 114000 lb
closure type : Open
static load capacity : 155000 lbs
snap ring included : Without Snap Ring
