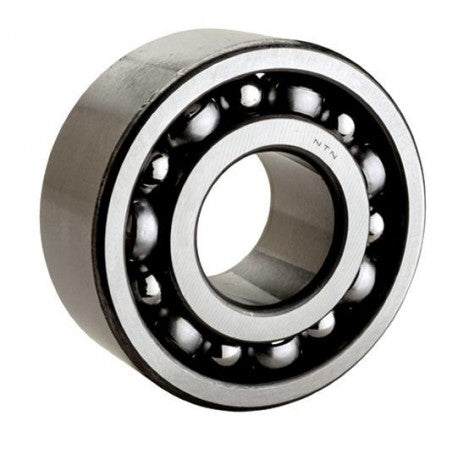

5319C3 NTN Double Row Angular Contact Ball Bearings Features & Specifications:
radial dynamic load capacity : 212000 N
outside diameter : 200 mm
Bore Diameter : 95 mm
Radial static load capacity : 199000 N
overall width : 3.0625 in
operating temperature range : -40 to 120 ºC
contact angle : 30 °
cage material : Aluminum
row type & fill slot : Double-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : Class 0
fillet radius : 4 mm
closure type : Open
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
