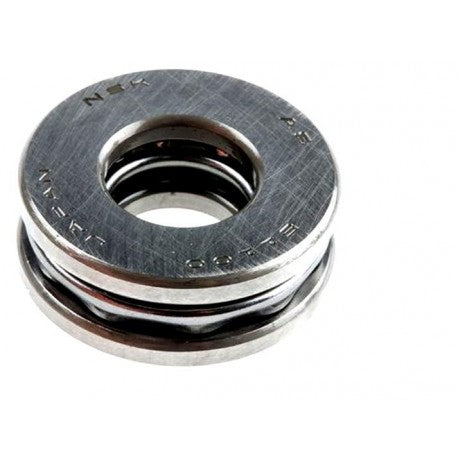

53314 NSK Ball Thrust Bearings bore Features & Specifications:
static load capacity : 70500 lbf
dynamic load capacity : 31000 lbf
Bore Diameter : 70 mm
outside diameter : 125 mm
overall width : 48 mm
operating temperature range : Maximum of +120 °C
thrust bearing type : Single-Direction
maximum rpm : 2000 rpm
outside diameter design : Straight
cage material : Steel Cage
separable or banded : Separable
fillet radius : 1.1 mm
race type : Flat
Series : 52300
precision rating : ABEC1, P0
