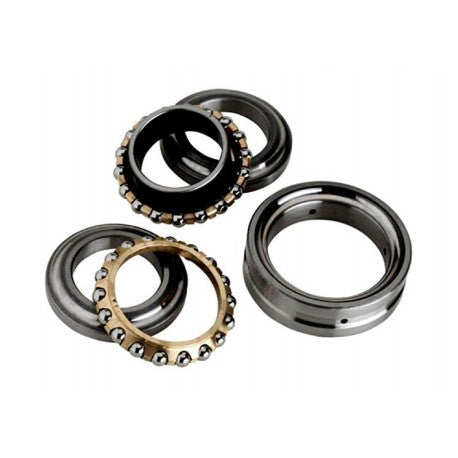

562009/GNP5 NTN Ball Thrust Bearings bore Features & Specifications:
Bore Diameter : 45 mm
dynamic load capacity : 26000 N
outside diameter : 75 mm
operating temperature range : -40 to 120 ºC
overall width : 38 mm
thrust bearing type : Double-Direction
maximum rpm : 6900 rpm
bearing material : High Carbon Chrome Steel
outside diameter design : Straight
cage material : Brass
fillet radius : 1 mm
separable or banded : Separable
precision rating : ISO Class 5
static load capacity : 69000 N
