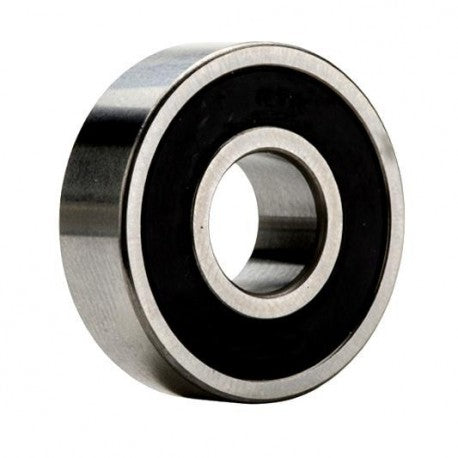

6003LLBP5 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 17 mm
static load capacity : 3350 N
outside diameter : 35 mm
precision rating : ISO Class 5
overall width : 10 mm
bore type : Round
finish/coating : Uncoated
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
cage material : Steel
inner ring width : 10 mm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
outer ring width : 10 mm
internal clearance : CN
maximum rpm (grease) : 20000 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 0.3 mm
