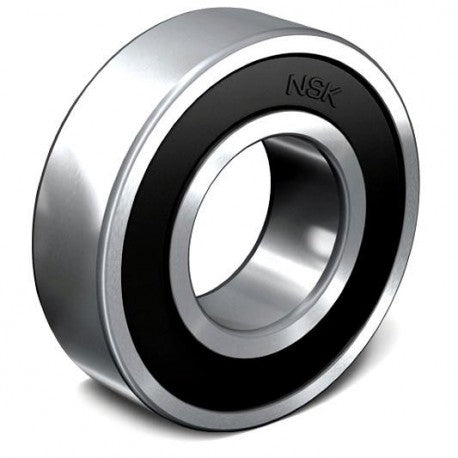

6003VC3 NSK Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 17 mm
static load capacity : 3250 N
outside diameter : 35 mm
precision rating : ABEC 1 (ISO Class Normal)
overall width : 10 mm
bore type : Round
finish/coating : Uncoated
cage material : Steel
closure type : Single Seal
outer ring width : 10 mm
fillet radius : 0.3 mm
row type & fill slot : Single Row Non-Fill Slot
internal clearance : C3
maximum rpm : 22000 RPM
operating temperature range : Maximum of +250 °F
Series : 60
dynamic load capacity : 6000 N
