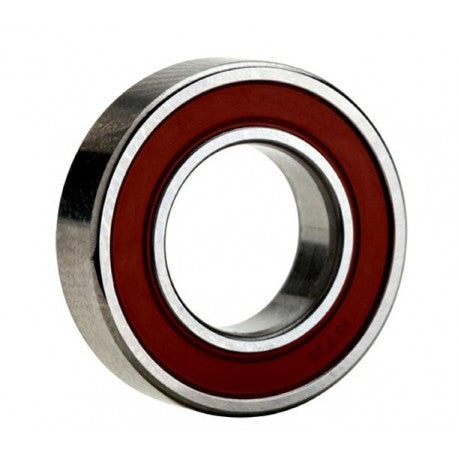

6009LLUC4 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 11500 N
precision rating : ISO Class 0
Bore Diameter : 45 mm
outside diameter : 75 mm
overall width : 16 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 16 mm
snap ring included : Without Snap Ring
outer ring width : 16 mm
internal clearance : C4
maximum rpm (grease) : 5400 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 1 mm
