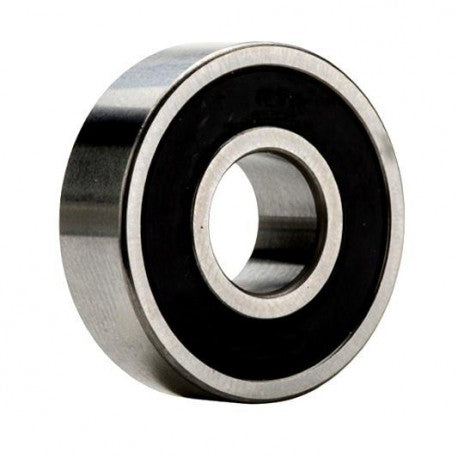

6022LLBC3/EM NTN Radial/Deep Groove Ball Bearings Features & Specifications:
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 28 mm
snap ring included : Without Snap Ring
outer ring width : 28 mm
internal clearance : C3
maximum rpm (grease) : 3800 rpm
Bore Diameter : 110 mm
static load capacity : 73000 N
outside diameter : 170 mm
precision rating : ISO Class 0
overall width : 28 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
operating temperature range : -40 to 120 ºC
fillet radius : 2 mm
