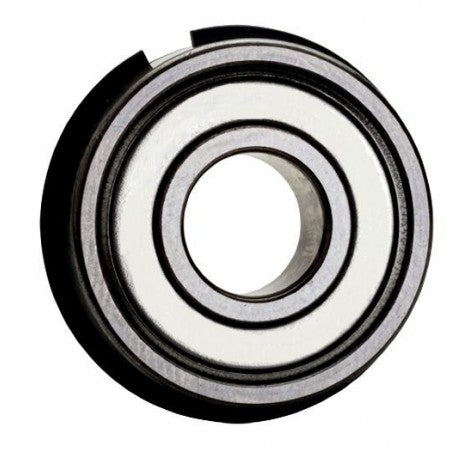

6022ZNR NTN Radial/Deep Groove Ball Bearings Features & Specifications:
precision rating : ISO Class 0
outside diameter : 170 mm
Bore Diameter : 110 mm
finish/coating : Uncoated
overall width : 28 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Single Shield
inner ring width : 28 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 28 mm
maximum rpm (grease) : 3800 rpm
snap ring included : With Snap Ring
internal clearance : CN
maximum rpm (oil) : 4500 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 2 mm
